INTRODUCTION

Concrete made from Portland cement is the most important structural material in civil construction today. As described by Helene and Andrade (2007), concrete can be considered one of the most interesting discoveries in the history of human development and quality of life, even being the most recent of structural building materials.

The use of concrete walls molded onsite has become an option frequently used in Brazil in order to achieve the social goal of reducing the housing deficit. In hot climates, it becomes necessary to discuss the thermal discomfort caused by the use of this type of material, which can be minimized with concrete having lower specific mass obtained with the incorporation of air entrainment additives. This technique, however, can lead to a decrease in both mechanical performance and in protection against the entry of water and aggressive agents into the structure.

It is noteworthy that these systems have been used in buildings around the country for about 30 years and, according to Corsini (2011), are divided basically into two types, depending on the concrete adopted: normal density concrete walls and light concrete walls. To regulate systems of conventional concrete walls, ABNT NBR 16055 (2012) was published in 2012. For wall systems made from light foamed concrete, there are standards dating from 1992 (ABNT NBR 12645 and NBR 12646, 1992), which are currently under review, with important discussions taking place regarding the improvement in thermal performance and the loss of reinforcement protection provided by the concrete itself. In this context, the current study evaluated, through experimental development, concrete having different levels of specific mass and its consequences on the principal mechanical properties (resistance to compression) and cement qualities (water absorption, void index, carbonatation depth, etc.) to prevent water entering into the interior of the structure.

Light concrete

As shown by Rossignolo (2009), lightweight concrete is characterized by a reduction of the specific mass in relation to conventional concrete, as a consequence of the substitution of part of the solid materials with air. According to Romano, R. C. O. et al. (2015), they can be classified as concrete with light aggregates, cellular concrete, and non-fine concrete. According to NBR 8953 (2015), these concretes should be classified by specific mass according to Table 1.

The analysis of the specific mass obtained for groups of concrete shows a correlation with the inclusion of voids. The relationship between intentionally entrapped air content and specific mass is quite straightforward; an increase in the volume of air causes a reduction in the value of specific mass, while maintaining the same proportion of materials. The specific mass of the concretes is reduced through the inclusion of voids in its interior.

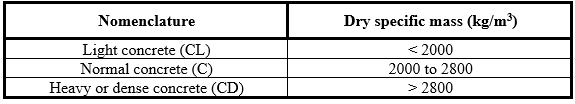

The lightweight concrete group, however, is broad and it is not adequate to simply classify it only by specific mass. Other qualities must also be taken into account. It is important to consider the production method, that is, what materials and processes are considered during preparation, such as mechanical resistance, workability, retraction, and fluency, among others.

Air entrainment additives

According to Du et al. (2005) and Whiting et al. (1999), air-entraining additives have the function of producing stable air bubbles evenly distributed throughout the concrete. According to Mehta and Monteiro (2014), the air-entraining additives are surfactants, usually consisting of wood resin salts, proteins and fatty acids, and some synthetic detergents. According to Kumaran et al. (2004), the air entrained by the additive takes the form of small bubbles having dimensions between 0.01 mm and 1.00 mm, spaced from 0.10 mm to 0.20 mm apart, that display elastic behavior.

According to Torres et al. (2014), the additive incorporated in the mixture promotes a reduction in the surface tension of the water. For Fujii et al. (2015) and Bauer (1994), it acts by involving the air bubbles already present and also involves the finest aggregate particles of the cement. The combination of the solid particles involved, and the air bubbles is more stable than the each is alone. Although it reduces the mechanical strength of the concrete, the incorporation of air improves workability, reduces exudation, and improves the behavior of the material during transportation, which can be done with less possibility of segregation.

EXPERIMENTAL DEVELOPMENT

The proportions used were determined by adapting the Ibracon dosing method (Helene and Terzian, 1992), using concrete samples with three cement:aggregate proportions: 1:3, 1:4, and 1:5, all having the same consistency (170 ± 30) mm, which required the use of three different water/cement ratios: 0.43, 0.50, and 0.63, respectively (Table 2). The mortar content (α%) of 0.65 was also fixed for all dosages, a percentage commonly adopted for the preparation of lightweight concretes.

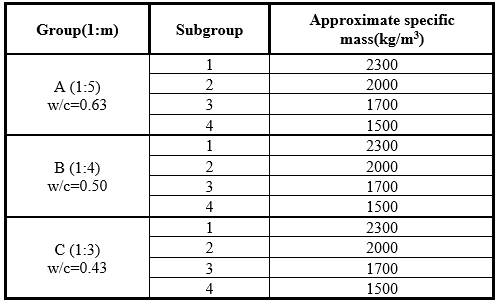

For each of these dosages, samples were prepared with four levels of specific mass in the fresh state, obtained using polyfunctional additive Mira 93/Grace (density: 1.17 g/cm3) and air entrainer SikaAer, (density: 1.01 g/cm3, nature: liquid, base: synthetic resin, pH (23ºC) 10-12, solid content(%): 4-6) with proportions of 0.5% and 0.1% of the mass of the cement, respectively, totaling 12 test families. The increase in void content was obtained from increasing the mixing time of the concrete in the concrete mixer (between 3 and 15 minutes), since the amount of additive was kept constant.

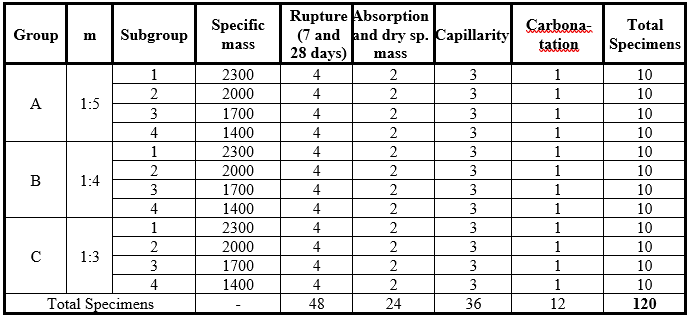

To carry out the study, 120 cylindrical (10 cm x20 cm) concrete specimens were molded for the tests to determine specific mass (fresh and hardened state), compressive strength (at 7 and 28 days), total and capillary absorption, and carbonatation depth, as shown in Table 3. All tests were performed according to their current standards, which are described in Table 4.

Laboratory production of concrete

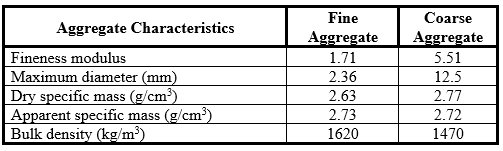

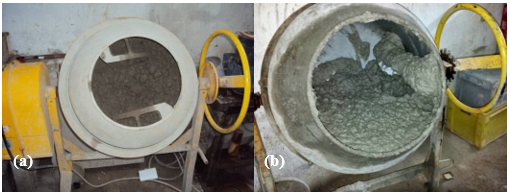

For the production of the concretes in the laboratory, dry aggregates and pre-mixed large and small aggregates were used with type CP-V ARI cement, similar to type III of ASTM C150 (2017). Some of the principal characteristics of the aggregates used are described in Table 5.

Soon after the initial mixing of the materials, the polyfunctional additive and kneading water were added (reserving approximately 500ml of water from the concrete to add the air entrainer). After initial mixing of the concrete, its subsidence and specific mass were determined. Subsequently, the air entrainer was added along with the remainder of the water, as shown in Figure 1.

After completing production, the specific mass of the fresh concrete was measured until reaching the approximate values intended and initially stipulated.

RESULTS

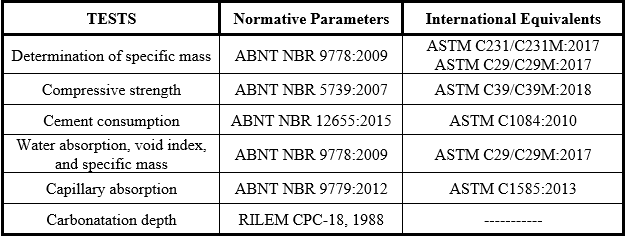

After reaching the ages planned after molding and wet curing, samples were divided among the tests planned for the hardened concrete. Figure 2 displays a graph with the specific masses according to ABNT NBR 9778 (2009), with their respective equivalences (ASTM C231/C231M and ASTM C29/C29M, 2017), obtained from the fresh concretes for the different study groups evaluated.

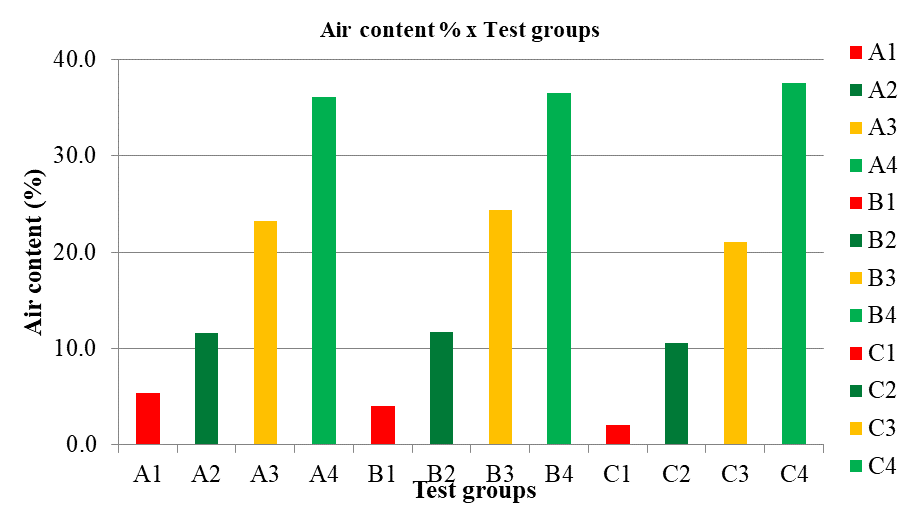

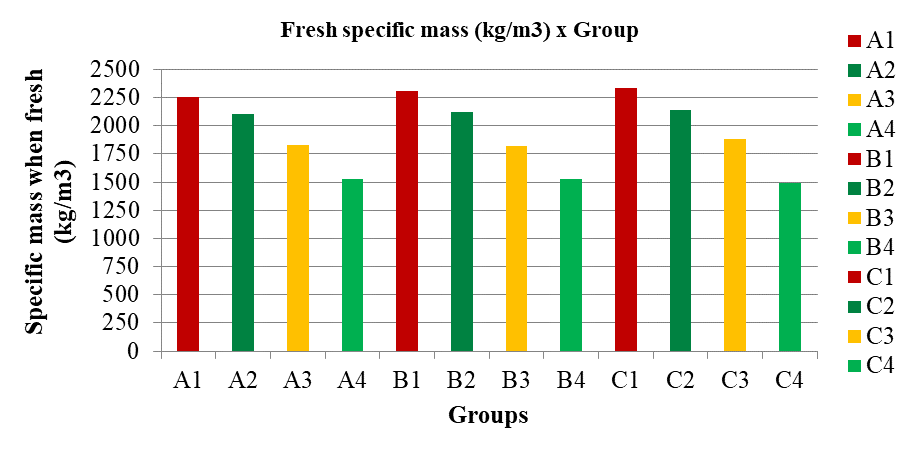

Fig. 3 shows the entrained air contents obtained from the fresh concrete for the different study groups evaluated.

Relationship between specific mass in the fresh state and compressive strength

Table 6 presents the results found from the compressive strength tests at 7 days and 28 days according to ABNT NBR 5739 (2007), equivalent to ASTM C39/C39M (2018), compared to the specific mass initially defined. For each concrete family, two cylindrical specimens were used, and the highest value found for the tested pair was considered to be representative of the sample.

Figures 8, 9, and 10 were generated from the compressive strength test data (Table 4) and the analysis of the influence of the water content of the concrete (Table 3). The water/cement ratio and the compressive strength for each specific mass group was evaluated.

The correlation between the water/cement ratio and strength, a determining factor in the study of concretes and verified by the Abrams model, is clearly observed for concrete of the conventional class (specific masses of 2300 kg/m³ and 2000 kg/m³). For the concrete of the lightweight class contemplated in the study (specific masses of 1700 kg/m³ and 1500 kg/m³), the w/c ratio alone is not the only determining parameter of compressive strength behavior.

Once the air-entrainment additive was added to the blend, an improvement in the cohesion of the materials was visually observed, but there were no variations in the subsidence values of the concretes with specific masses of 2300, 2000, and 1700 kg/m3. Concretes with specific mass of 1500 kg/m3 showed small increases in subsidence values, varying between 190 mm and 210 mm.

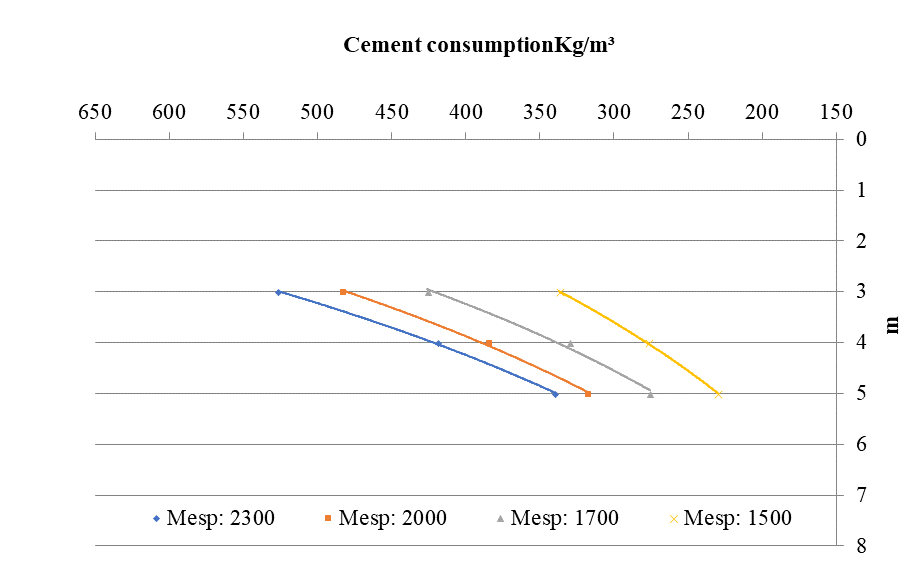

According to ABNT NBR 12655 (2015), equivalent to ASTM C1084 (2010), cement consumption of concrete having a lower specific mass is, in general, lower than for those of higher mass, as expected by Romano, et al. (2017), due to the inclusion of the air-entrainment additives, for similar consistency levels. In addition, for a larger "m" value, smaller cement consumption took place. The curves obtained for cement consumption for each specific mass is shown in Figure 4. (Error 1: La referencia debe estar ligada) (Error 2: El tipo de referencia es un elemento obligatorio) (Error 3: No existe una url relacionada)

Relation between specific mass in the fresh state, water absorption, void index, and dry specific mass.

The dry specific mass values obtained from the hardened concrete test showed variations from the initial values and those stipulated for the specific mass bands of the study. This is due to the different losses of water to which the concretes are submitted once the hardening process begins.

The values obtained from the void index tests corroborate the idea that concrete with lower specific mass has a higher void index. It also presents higher values of water absorption. A visualization of these three properties is shown in Figure 5.

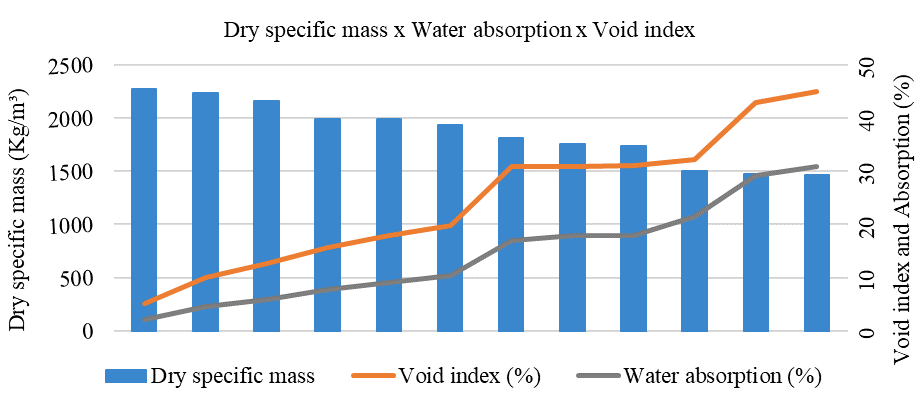

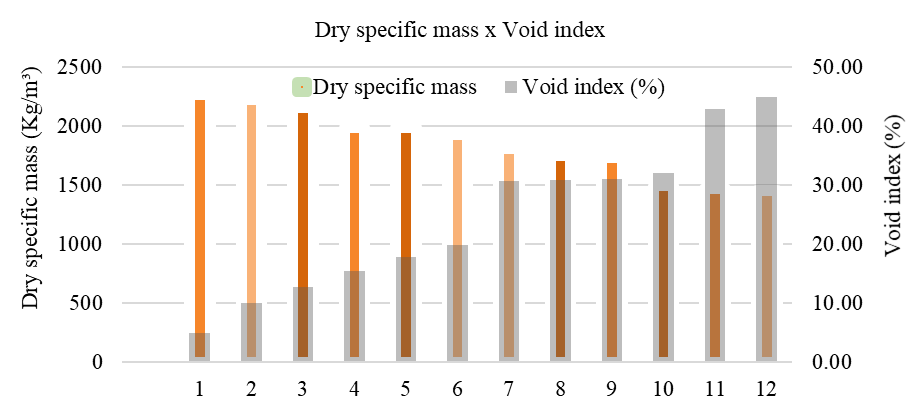

Figure 6 shows the relationship between the specific mass and the void index for the samples, according to NBR 9778 (2009), with equivalent international standard ASTM C29/C29M (2017).

Relationship between specific mass in the fresh state and capillary absorption

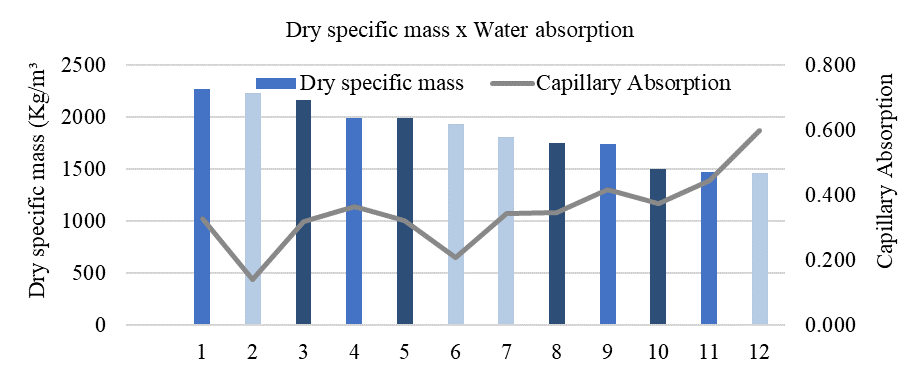

The study also sought to evaluate the capillary absorption rates of the concretes prepared, in order to verify the the effect of their properties on capillarity. To achieve this, the 12 concrete dosages used in the study were tested according to standard ABNT NBR 9779 (2012), equivalent to ASTM C1585 (2013).

In the specific case of capillary absorption, the relationship observed to have the greatest influence was still the specific mass of the concrete (obtained through the entrainment of air), but in addition, the water/cement ratio was much more influential than in the absorption, void index, and specific dry mass tests.

Figure 7 shows the graph of specific mass and capillary absorption for the 12 dosages, sorted into descending order of specific mass.

It can also be observed that, for concretes without the use of the air entrainment additive, the capillary absorption followed variation in the water/cement ratio quite closely. For the other concretes, there were variations in the results. It is still possible, however, to visualize the tendency of the absorption curve to grow as the values of specific mass decrease. It can be said that the w/c ratio influences but is not the only source of influence on the absorption behavior.

Relation between dry specific mass and compressive strength

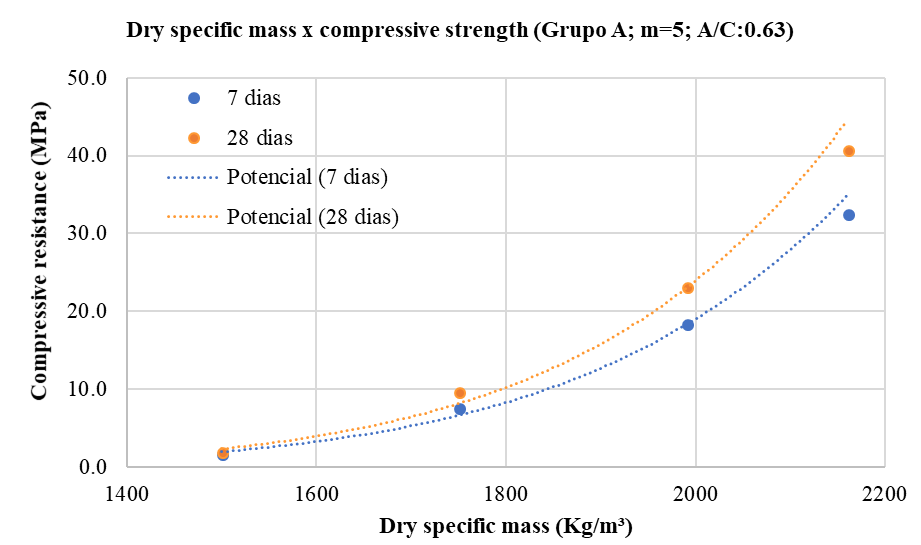

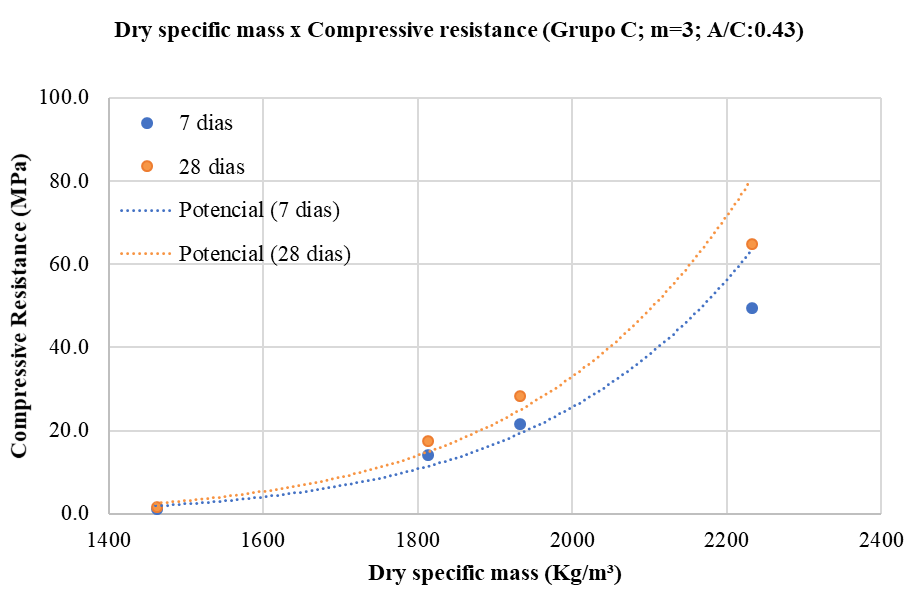

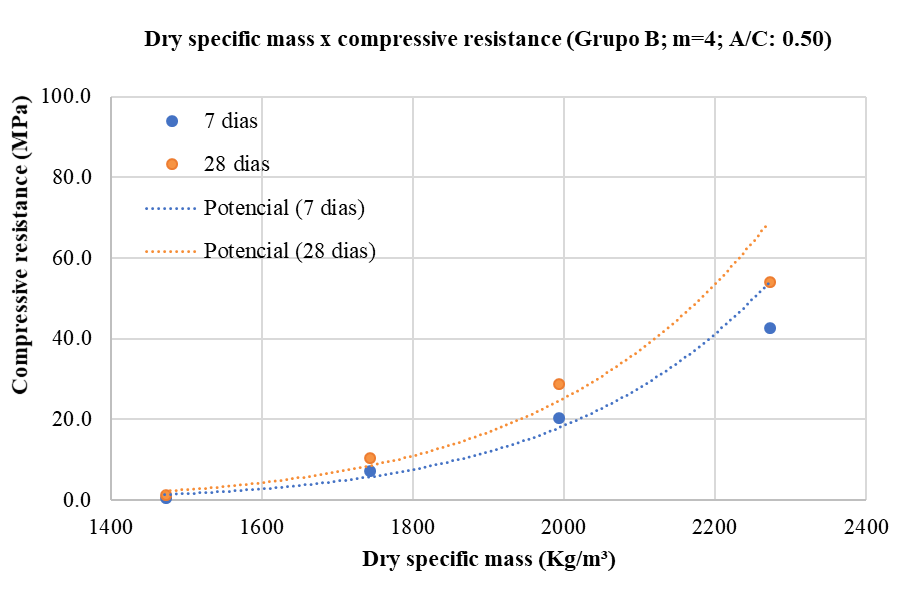

Figures 8, 9, and 10 show the relationship between the specific mass values of the concretes in the dry state and their respective compressive strengths, demonstrating the strong correlation between the properties.

The results show that higher values of compressive strength were found for higher densities. An increase in voids within the concrete causes both lower specific mass and a reduction in mechanical strength. According to NBR 12646 (1992), compressive strength values for of cellular concrete must meet a minimum value of 2.5 MPa.

It was verified that, for the same concrete, the increase of the entrainment of air provoked a reduction in the specific mass, and consequent reduction in the mechanical resistance. This behavior was influenced principally by two properties: the increase of the voids in the concretes and the water/cement ratio used.

It was observed that the concretes with specific mass near 1500 kg/m³, that is, those with more air entrainment, had compressive strength performance determined almost completely by the quantity of voids, taking into account the water/cement ratio adopted.

The results found agree with those obtained by Teixeira Filho (1992), where one of the observed results was the distinction of the influence of the water/cement ratio when different specific mass classes were observed. For concrete with specific mass of 1100 kg/m³ and 1300 kg/m³, increasing the water/cement ratio from 0.5 to 0.6 resulted in an increase in strength. For concrete classes with specific mass of 1700 kg/m³ and 1900 kg/m³, the same increase in the water/cement ratio, from 0.5 to 0.6, resulted in lower values of compressive strength.

In this study it is also observed that, for example, for dosages with specific masses of 1500 kg/m³, a water/cement ratio of 0.63 had higher axial compressive strength than for a water/cement ratio of 0.50. For the results obtained, it is possible to consider that the changes in the influence of w/c ration on the axial compressive strength are justified by the reduction of specific mass and increase in voids in the concrete (Teixeira Filho, 1992).

In addition, it was observed that concrete with a specific mass of 1900 kg/m³ has interesting mechanical properties, with values of compressive strength in the range of 20 MPa, combined with the possible benefits of air entrainment, such as reduced consumption, lower weight, and improvements in thermal and acoustic comfort compared to conventional concrete.

In the case of capillary phenomena, the evaluated concretes showed an increase in capillary absorption as specific mass decreased.

It is known that the permeability of concrete is a crucial factor for its durability. The more permeable the concrete, the more susceptible to the deleterious actions of agents present in the environment. Thus, special attention must be given when using concretes that have high void indices and high capillarity, as is the case in the present study.

Relationship between specific mass in the fresh state and carbonatation depth.

In order to evaluate the concretes studied from the point of view of carbonatation, 12 specimens were separated to be used in the evaluation. Because the previous test was non-destructive, it was possible to evaluate these concretes submitted to the atmospheric action of the laboratory environment, where they remained for a period of 110 days of exposure.

To perform the test, the procedure described in Rilem (1988) was used, and the 10x20 cm test specimens were sectioned at 1/3 of their length.

After sectioning, the specimens were sprayed with a solution of phenolphthalein (2%) for pH identification. A transition zone occurs along the advance of the carbonatation front, having pH below 9 and tending to be colorless in the presence of the solution. The zone with pH higher than 9 tends to be violet in color.

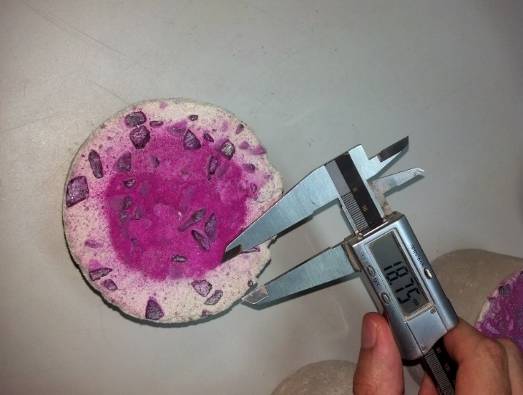

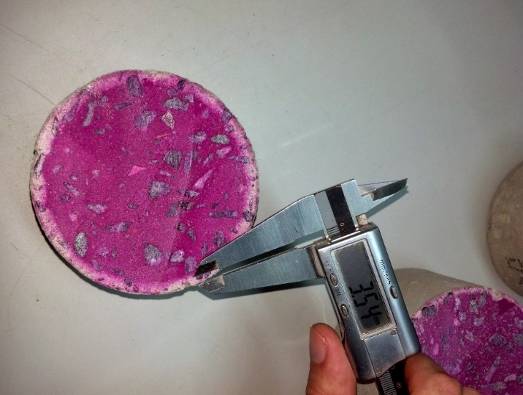

In this way, it was possible to identify the carbonatation front formed by observation, as shown in Figures 10 and 11.

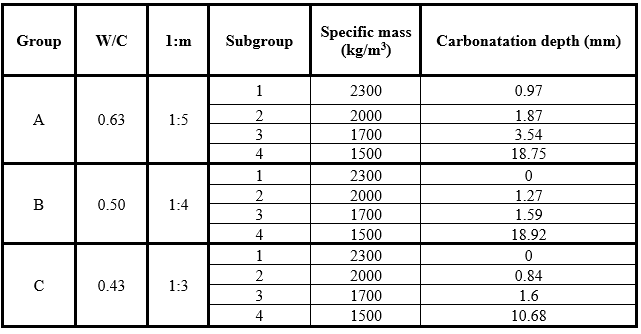

It was found that the lightweight concretes have a carbonation front that is much more advanced than that of the conventional concretes. Even those concrete with a reduced water/cement ratio, such as group C (w/c: 0.5), presented significant carbonation depths for the lower specific masses (1500 and 1700 kg/m3) over the 110 days of the test.

CONCLUSION

The current study evaluated the repercussions of a reduction in specific mass of concrete on its mechanical properties and durability. The interest in using concrete with an air entrainment additive has grown, especially for walls poured in place, that usually are repeated. This solution stands out for its tendency to improve thermal behavior, when compared to concrete of normal density, which is indispensable in regions of high temperatures, such as in the Brazilian northeast. Associated with this is a marked reduction in cement consumption insofar as the concrete density is reduced, despite the possible cost due to the inclusion of the air-entraining additives. However, it is essential that these benefits are weighed against the possible compromise in durability, due to the greater ease of entry for aggressive agents, especially chloride ions and carbon dioxide.

The tests demonstrated the strong influence that the reduction of the concrete’s specific mass had on its mechanical behavior, in particular, its durability. Reducing the specific mass also provoked significant increases in water absorption (3% to 30%), void index (5% to 50%), capillary absorption (0.2 g/cm2 to 0.6 g/cm2) and carbonatation depth (0 mm to 18.9 mm).

These results point to the need to adopt measures of surface protection for the concrete when used in regions with an aggressive environment, in order to reap the benefits (especially financial and economic) of the technique, without compromising the concrete’s durability. It is also necessary to assess the need for maintenance in order to ensure adequate performance behavior over the years.

REFERENCES

ABNT - Associação Brasileira de Normas Técnicas (1992), NBR 12645: Execução de paredes de concreto celular espumoso moldadas no local - Procedimento. Rio de Janeiro.

ABNT - Associação Brasileira de Normas Técnicas (2012), NBR 16055: Parede de concreto moldada no local para a construção de edificações – Requisitos e procedimentos. Rio de Janeiro, Brasil.

ABNT - Associação Brasileira de Normas Técnicas (2015), NBR 8953: Concreto para fins estruturais – Classificação pela massa específica, por grupos de resistência e consistência. Rio de Janeiro, Brasil.

ABNT - Associação Brasileira de Normas Técnicas (2007), NBR 5739: Concreto - Ensaios de compressão de corpos-de-prova cilíndricos. Rio de Janeiro, Brasil.

ABNT - Associação Brasileira de Normas Técnicas (2015), NBR 12655: Concreto de cimento Portland - Preparo, controle, recebimento e aceitação – Procedimento. Rio de Janeiro, Brasil.

ABNT - Associação Brasileira de Normas Técnicas (2009), NBR 9778: Argamassa e concreto endurecidos - Determinação da absorção de água, índice de vazios e massa específica. Rio de Janeiro, Brasil.

ABNT - Associação Brasileira de Normas Técnicas (2012), NBR 9779: Argamassa e concreto endurecidos — Determinação da absorção de água por capilaridade. Rio de Janeiro, Brasil.

ABNT - Associação Brasileira de Normas Técnicas (1992), NBR 12646 - Paredes de concreto celular espumoso moldadas no local - Especificação. Rio de Janeiro, Brasil.

ASTM International (2017). ASTM C150/C150M-17 Standard Specification for Portland Cement. Retrieved from https://doi.org/10.1520/C0150_C0150M-17

ASTM International (2013). ASTM C1585-13 Standard Test Method for Measurement of Rate of Absorption of Water by Hydraulic-Cement Concretes. Retrieved from https://doi.org/10.1520/C1585-13

ASTM International. (2010). ASTM C1084-10 Standard Test Method for Portland-Cement Content of Hardened Hydraulic-Cement Concrete. Retrieved from https://doi.org/10.1520/C1084-10

ASTM International (2017). ASTM C231/C231M-17a Standard Test Method for Air Content of Freshly Mixed Concrete by the Pressure Method. Retrieved from https://doi.org/10.1520/C0231_C0231M-17A

ASTM International (2018). ASTM C39/C39M-18 Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens. Retrieved from https://doi.org/10.1520/C0039_C0039M-18

ASTM International (2017). ASTM C29/C29M-17a Standard Test Method for Bulk Density (“Unit Weight”) and Voids in Aggregate. Retrieved from https://doi.org/10.1520/C0029_C0029M-17A

Bauer, L. A. F. (1994), Materiais de Construção, 5.ed. Rio de Janeiro: ABDR Afiliada, v.1.f

Corsini, R. (2011) Paredes normatizadas. Norma inédita para paredes de concreto moldadas in loco entra em vigor e promete impulsionar uso da tecnologia em edificações. In: Revista

Téchne, No. 183. Dezembro de 2011. Disponível em: http://techne.pini.com.br/engenharia-civil/183/paredes-normatizadas-norma-inedita-para-paredes-de-concreto-moldadas-287955-1.aspx

Du, L., Folliard, J. K. (2005), Mechanisms of air entrainment in concrete. Cement and Concrete Research, v. 35, n. 8, p. 1463-1471. https://doi.org/10.1016/j.cemconres.2004.07.026

Fujii, A. L., Torres, D. R., Romano, R. C. O., Cincotto, M. A., Pileggi, R. G. (2015), Impact of superplasticizer on the hardening of slag Portland cement blended with red mud. Construction & Building Materials, v. 101, p. 432-439. https://doi.org/10.1016/j.conbuildmat.2015.10.057

Helene, P., Andrade, T. (2007), Concreto de cimento Portland. In: Isaia, Geraldo Cechella. Materiais de Construção Civil e Princípios de Ciência e Engenharia de Materiais. São Paulo: IBRACON. V2, Cap. 27, p. 905 -944.

Kumaran, K., Lackey, J., Normandin, N., Van Reenen, D., Tariku, F. (2004), "Heat, Air and Moisture Transport Properties of Several North American Bricks and Mortar Mixes", Journal of Testing and Evaluation, v. 32, n. 5, pp. 383-389. https://doi.org/10.1520/JTE12079

Mehta, P. K., Monteiro, P. J. (2014), Concreto: microestrutura, propriedades e materiais. 2ª ed. IBRACON. p. 313.

Helene, P., Terzian P. (1992), Manual de Dosagem e Controle do Concreto, São Paulo, SP, Ed. Pini.

RILEM TC (1994). CPC 18 Measurement of hardened concrete carbonation depth, 1988. RILEM Recommendations for the Testing and Use of Constructions Materials. e-ISBN: 2351580117, Publisher: E & FN SPON, Pages: 56 – 58, RILEM.

Rossignolo, J. A. (2009), Concreto Leve Estrutural. Produção, Propriedades Microestrutura e Aplicações. São Paulo: Editora Pini.

Romano, R. C. O., Torres, D. R., Pileggi, R. G. (2015), Impact of aggregate grading and air-entrainment on the properties of fresh and hardened mortars. Construction & Building Materials, v. 82, p. 219-226. https://doi.org/10.1016/j.conbuildmat.2015.02.067

Romano, R. C. O., Maciel, M. H., Cincotto, M. A., Pileggi, R. G. (2017), Monitoring of hardening of Portland cement suspension by Vicat test, oscillatory rheometry, and isothermal calorimetry. APPLIED RHEOLOGY, v. 27, p. 36006. http://doi.org/10.3933/ApplRheol-27-36006

Teixeira Filho, F. J., Tezuka, Y. (1992), Considerações Sobre Algumas propriedades dos Concretos Celulares Espumosos. Boletim Técnico da Escola Politécnica da USP. Departamento de Engenharia da Construção Civil. São Paulo. EPUSP.

Torres, D. R., Fujii, A. L., Romano, R. C. O., Pileggi, R. G. (2014), Impacto da rota de incorporação de ar nas propriedades de materiais cimentícios. Ambiente Construído (Online), v. 14, p. 141-152. http://dx.doi.org/10.1590/S1678-86212014000200010

Whiting, D. A., Saak, A. W., Jennings, H. M. (1999), The influence of mixing on the rheology of fresh cement paste. Cement and Concrete Research, Volume 29, Issue 9, September 1999, Pages 1491-1496. https://doi.org/10.1016/S0008-8846(99)00124-6
